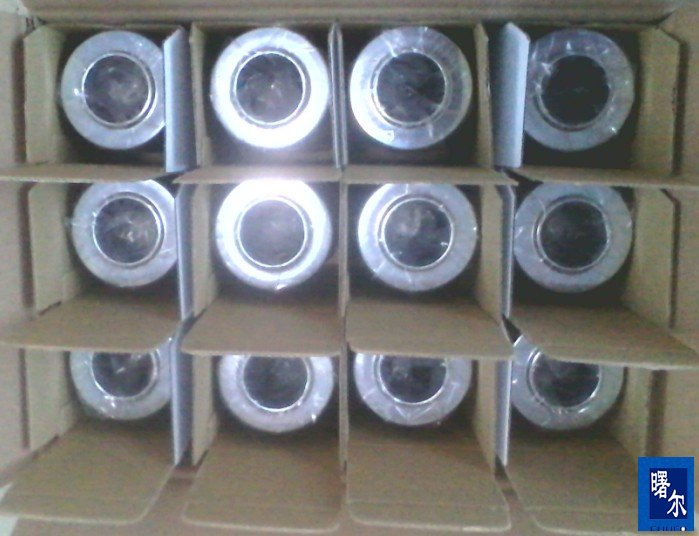

Pi3215mahle768.040.8瑪勒濾芯

F.安裝新的或清潔元件

Cartridge

墨盒

1. Lubricate all seals.

1。所有密封件的潤滑。

2. Mount new or cleaned Parker

2。安裝新的或清洗帕克

fi lter cartridge.

濾波器盒。

NOTE: For ease of mounting, hold the

注：為方便安裝，持有

cartridge away from the magnetic core

墨盒遠(yuǎn)離磁芯

until the stud is through the hole in

直到螺柱通過孔

the bottom of the element. Then slide

元素的底部。然后滑

it up to securely seat it to the top of

它的安全座椅到頂部

the bridge.

橋。

3. Install the bypass spring

3。安裝旁路彈簧

assembly or nonbypass

裝配或nonbypass

plate, and tighten until

板上，并擰緊至

snug.

舒適的。

NOTE: Older versions may have a

注：舊版本可能有

cotter pin/castellated nut retained

開尾銷/槽螺母保留

bypass spring. In these cases, the nut

旁路彈簧。在這些情況下，螺母

should be turned down the shaft until

應(yīng)該把軸直到

the cross drilled hole is visible in the

交叉鉆孔中可見

base of a castellation and the cotter

一種齒形和扁基地

pin inserted and ends fl ared to lock

銷插入端FL ARED鎖

the bypass assembly in place.

在旁路組件。

4. Re-install the insert into the

4。重新安裝插入

fi lter housing, making sure that

濾波器外殼，確保

the top- spring is secure.

頂部的彈簧是安全的。

5. Re-install the cover. Torque the

5。重新安裝蓋。扭矩

cover nuts to 22 ft./lbs.

蓋螺母到22英尺/磅。

Follow procedures B.1 and B.2.

遵循程序1和B。

77689078 Pi8530Drg100瑪勒濾芯 Drg 100 4280
77668510 Pi8630Drg200瑪勒濾芯 Drg 200 2975
77718786 Pi8730Drg300瑪勒濾芯 Drg 300 2975
77718794 Pi8830Drg500瑪勒濾芯 Drg 500
